KATL → KPIT

Executive Summary

This is an active convective day — two Convective SIGMETs are currently covering the KATL departure area and the mid-route corridor, with severe thunderstorms, tops above FL450, hail to 1 inch, and 50 kt gusts possible in the vicinity of Atlanta at your planned wheels-up time. The primary risk is departing into or immediately after active, organized convection near KATL, compounded by a UUA MOD-SEV turbulence report at FL130 over the Atlanta area approximately 30 minutes before your ETD. The destination KPIT is clean — VFR under high pressure with scattered cumulus tops around 4,000–6,000 ft and no convective threat. Verdict: MARGINAL GO, conditional on the convective SIGMETs expiring without replacement and no new convection redeveloping over the departure corridor before engine start. Single most important trigger: Convective SIGMET 70E and 71E expire at 20:55Z — if any replacement SIGMET covers the departure area or the route corridor at wheels-up, delay or scrub the departure. Recommended cruise altitude is 8,000 ft (terrain clearance margin above the corridor max of 5,777 ft; runner-up 9,000 ft). This recommendation covers terrain and weather only — it does not account for airspace, MEAs/airways, aircraft performance, or oxygen requirements; final altitude selection including the hemispheric rule is yours.

Route Hazards

Before Departure — What to Recheck

• Convective SIGMETs 70E and 71E expire at 20:55Z. Your ETD is 20:30Z — these are active at wheels-up. Before starting engines, confirm both have expired and verify whether a replacement SIGMET has been issued for the GA/TN/WV corridor. If any replacement SIGMET covers your initial climb path or the first 150 nm of route, do not depart.
• Current METAR KATL (18:52Z, at generation time): Thunderstorms southwest, CB southeast moving east, TCU northwest-northeast-east, winds 270/18G24 kt. These storms are moving toward the field — check the latest METAR, ATIS, and ATC advisories immediately before taxi.
• Preflight radar check: Pull current NEXRAD before engine start to assess cell positions relative to your initial departure heading. Remember — ground-based NEXRAD imagery is several minutes old, and cockpit datalink NEXRAD can be 15–20+ minutes behind real time (NTSB Safety Alert SA-017). It shows where weather was. Do not use it to thread between cells; use it for strategic go/no-go only. If cells are depicted over or immediately northeast of KATL, delay.
• Both Atlanta-area TFRs are active at ETD. NOTAM 6/3224 (surface–1,000 ft) and NOTAM 6/8212 (surface–400 ft) cover the KATL climb-out zone. Verify your departure routing clears both TFR boundaries with ATC before taxi. These are surface-to-low-altitude TFRs; you transit them on climb-out.
• AFD for ATL (WFO FFC): Medium confidence only on whether the convection pushes all the way to the airfield this afternoon. High confidence for IFR stratus after dark. If you delay departure past ~23:00Z, expect IFR ceilings around the KATL area (per AFD: IFR cigs "common" and patchy fog overnight).
• Go/no-go trigger: No active convective SIGMET over the departure corridor + no cells depicted on current radar over the initial climb sector + surface winds at KATL under 25 kt gusting = GO. Any active SIGMET at engine start = HOLD.

Leaving KATL — Departure at 2026-07-12 20:30Z

Departure conditions are marginal VFR deteriorating to potential IMC at wheels-up time.

At generation time (18:52Z), KATL was officially VFR — 10 SM visibility, scattered CBs at 3,700 ft, broken at 15,000 ft, overcast at 20,000 ft, winds 270/18 gusting 24 kt. Thunderstorm in progress to the southwest, additional cells to the southeast moving east, TCU building northwest through east. The TAF for your 20:30Z departure slots you into the base period (27010 kt, P6SM, SCT030 SCT120) but with a TEMPO 18–22Z calling for VRB10G25 kt, 2 SM visibility, TSRA, BKN035CB. That TEMPO window brackets your departure exactly.

Practically: You may be departing into or shortly after active thunderstorm activity over or adjacent to the field. Ceiling at departure could be broken CBs at 3,500 ft with 2 SM in heavy rain — this is likely a departure IMC situation if the TEMPO conditions are realized. The ATL WFO flags "medium confidence" on whether the storms reach the airfield, but the Convective SIGMETs and current METAR paint a picture of organized convection already on the doorstep.

Winds at departure: 270/10 kt per TAF base, gusts to 25 kt possible in TEMPO conditions. Runway preference is for 08R/26L and 09L/27R for departures — westerly component favors 08/09 series. With outflow from nearby convection, expect possible wind shifts and gusts; confirm current ATIS and AWOS before taxi.

Bottom line on departure: If the TEMPO is in progress at 20:30Z — visible CBs over the field, 2 SM visibility, winds gusty and variable — delay until the activity has moved east and conditions return to base period. If it is a VMC slot with CBs clearly east and southeast and no active SIGMET replacement, a departure is workable but must be executed immediately before the next round develops.

The Ride at 8,000 ft

Winds Aloft

Data valid 18:00Z, based on 12:00Z sounding. Stations near route decoded at 6,000 ft and 9,000 ft to bracket the 8,000 ft cruise:

Overall wind picture: Light westerly-southwesterly flow in the 15–17 kt range in the southern half of the route (ATL to TRI), shifting to lighter easterly flow in the northern half (CRW to AGC). Expect a mild tailwind component departing Atlanta, a neutral mid-section, and a minor headwind of 5–10 kt on the final leg into Pittsburgh. No jet stream-level winds at this altitude; no significant wind-over-terrain concern at ridge-level flow of 15–17 kt (well below the 30 kt threshold for meaningful mountain wave).

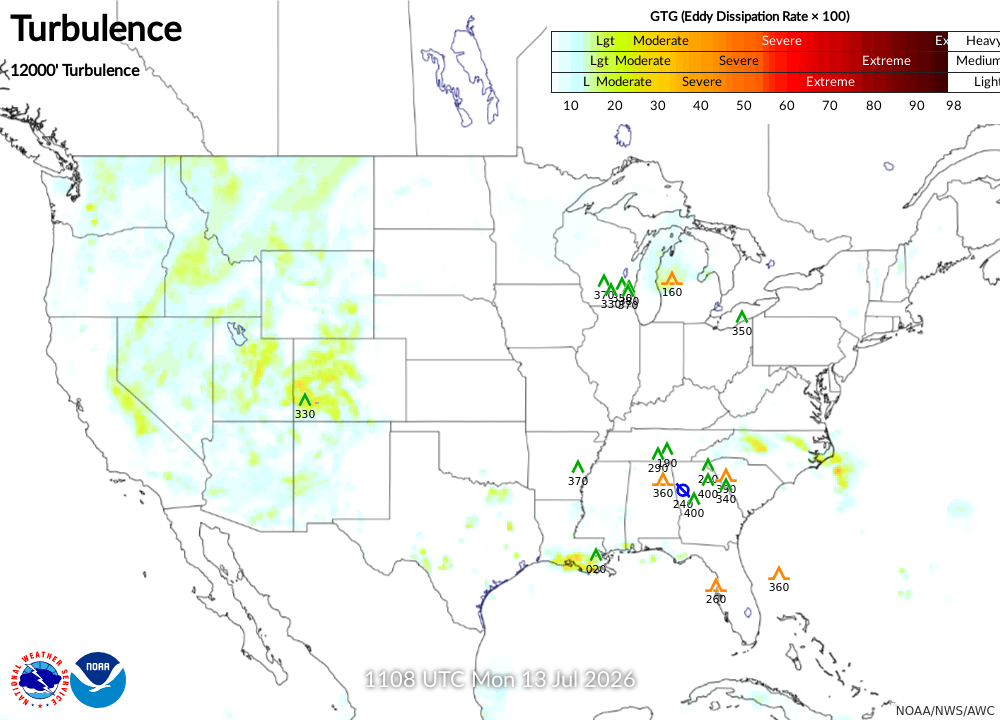

Ride Quality

Near KATL (first 50–75 nm): Moderate to severe turbulence possible. The UUA PIREP at 17:58Z placed MOD-SEV turbulence at FL130 directly over ATL with a +1,500 fpm vertical excursion. At 8,000 ft, convective turbulence below the active cell bases is likely if the SIGMET-level convection is still present. The GTG turbulence product at FL120 shows orange-coded turbulence (moderate, verging on significant) over northern Georgia and southern Virginia at 19:08Z.

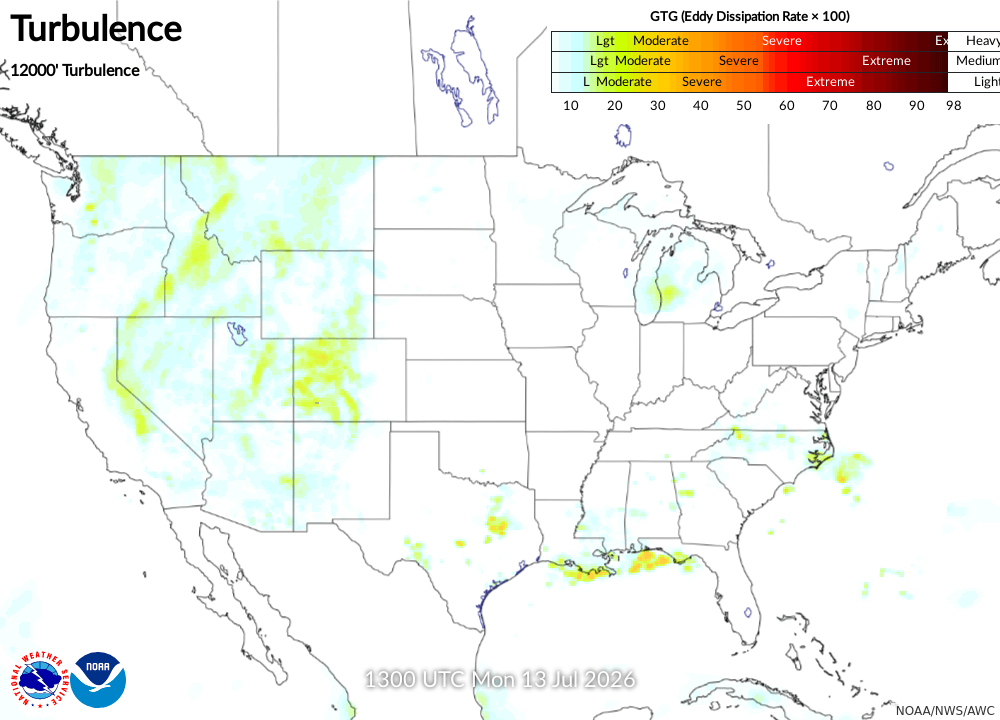

Mid-route (TN/WV corridor, ~100–350 nm): Light to moderate turbulence, moderate near cells. The +03hr GTG product shows light-to-moderate (yellow) turbulence broadly across the mid-route Appalachian corridor at FL120. PIREPs in this sector are mostly light chop: TRI at FL190 (LGT CHOP), CVG at 4,500–5,500 ft (MOD CHOP), LEX at FL370 (LGT-MOD CHOP). At 8,000 ft, scattered convection on the surface prog will be the primary driver — stay visual with storm tops or on ATC vectors around cells. Severe turbulence is possible in or adjacent to any active convective cell.

Near KPIT (final 50 nm): Smooth to light chop. The AGC Pittsburgh PIREP environment is clean. VFR conditions, light easterly flow, no convection. Expect smooth-to-light-chop arrival conditions.

Terrain turbulence: Ridge-level winds (9,000 ft) are 14–17 kt over the Appalachians — below the 20 kt threshold for meaningful terrain-induced turbulence. Mountain wave is not a significant factor today.

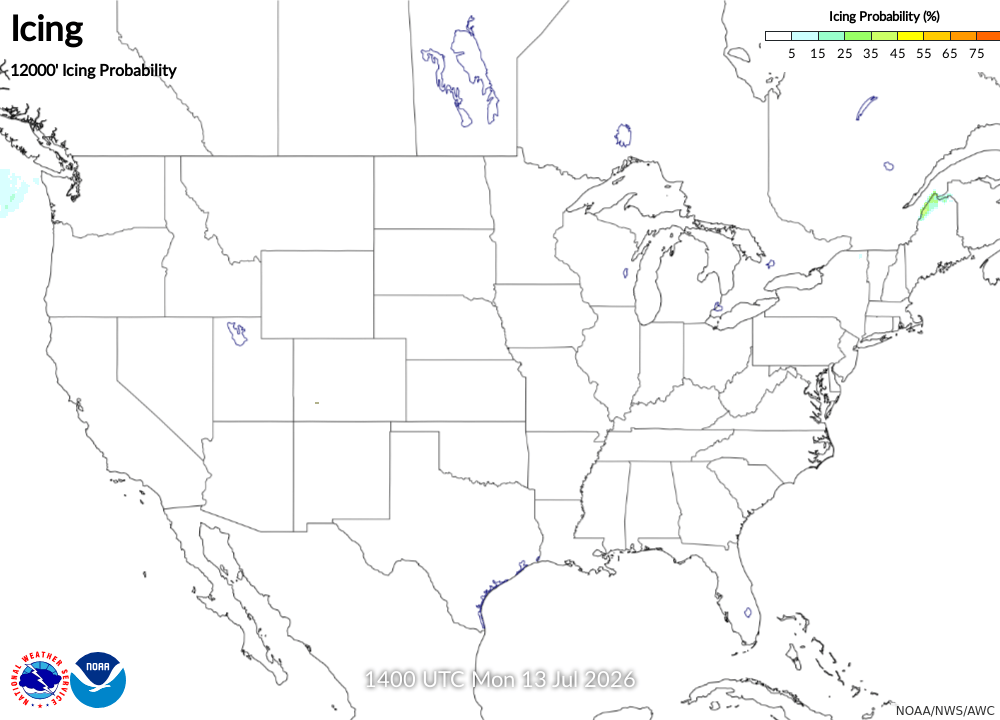

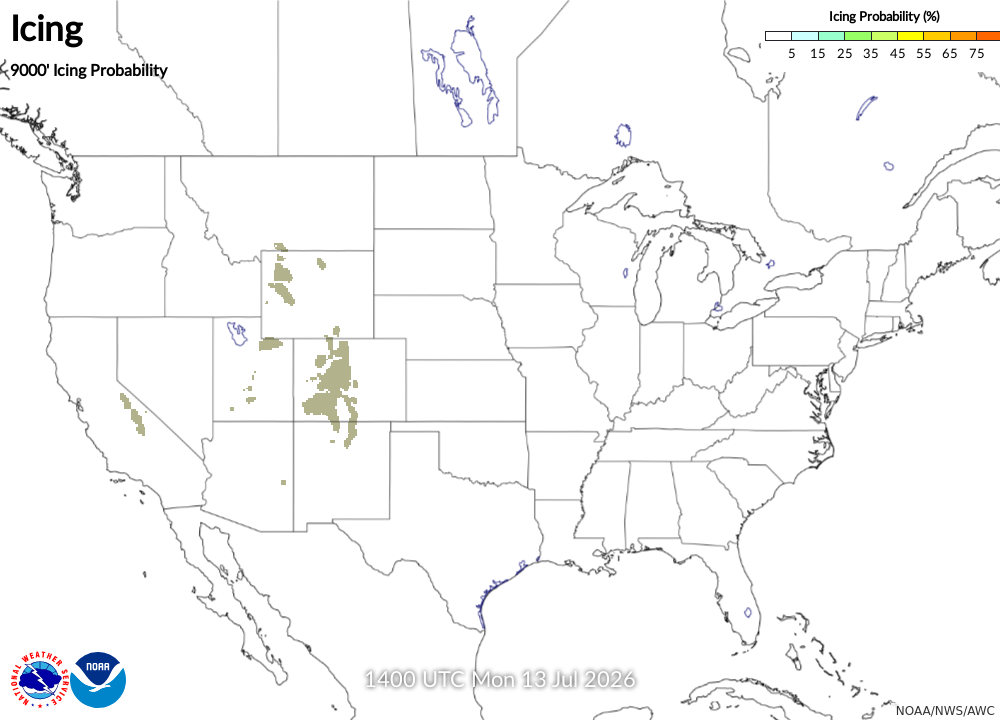

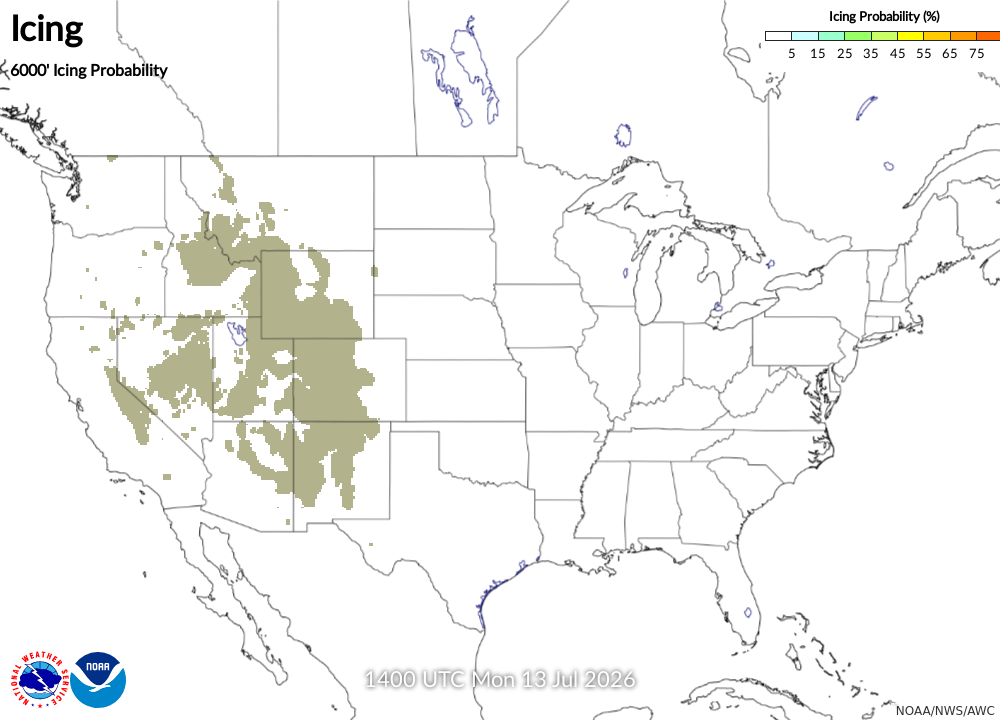

Icing

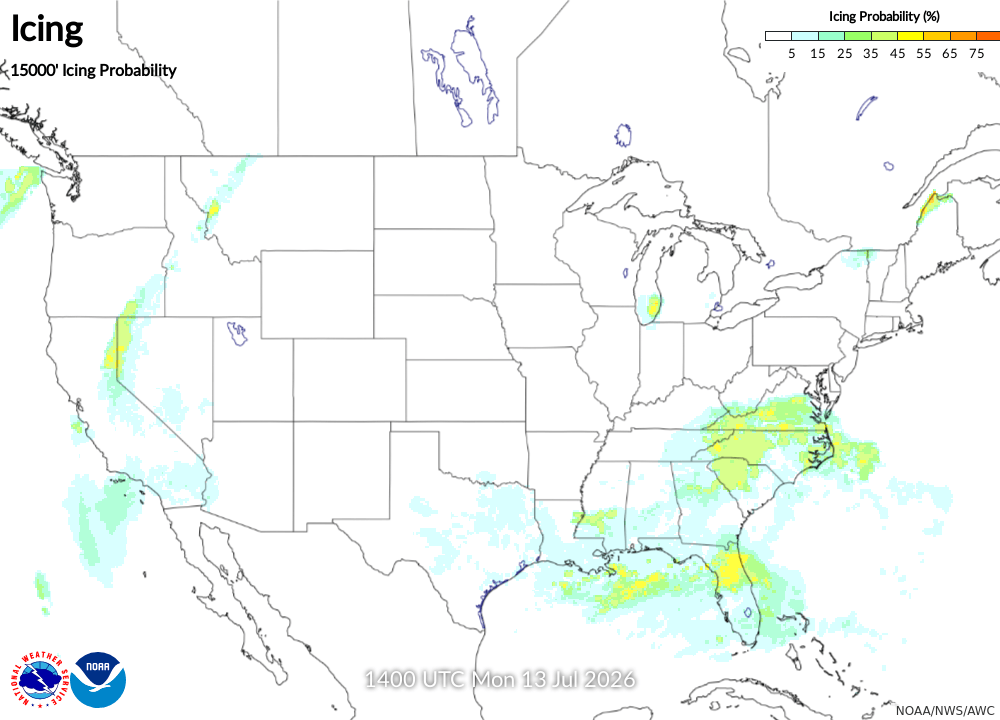

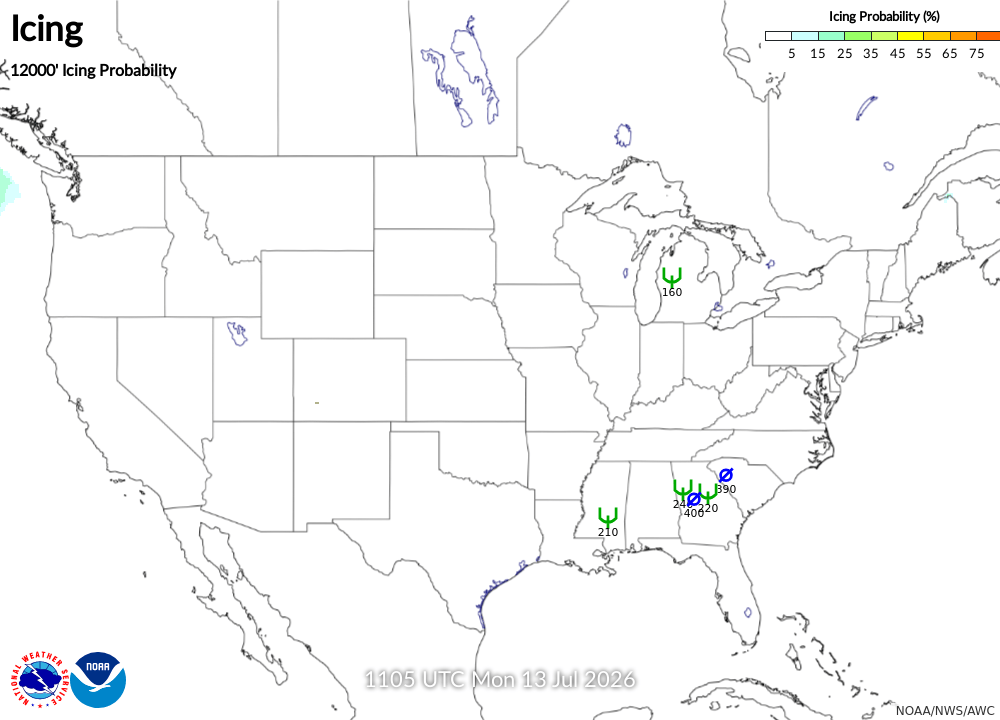

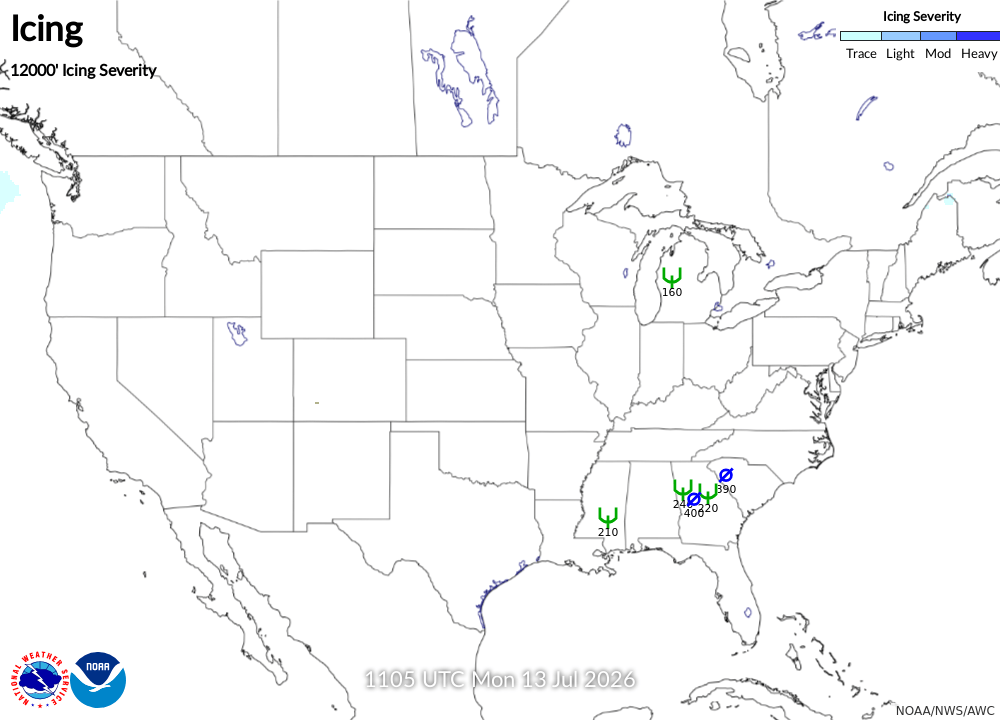

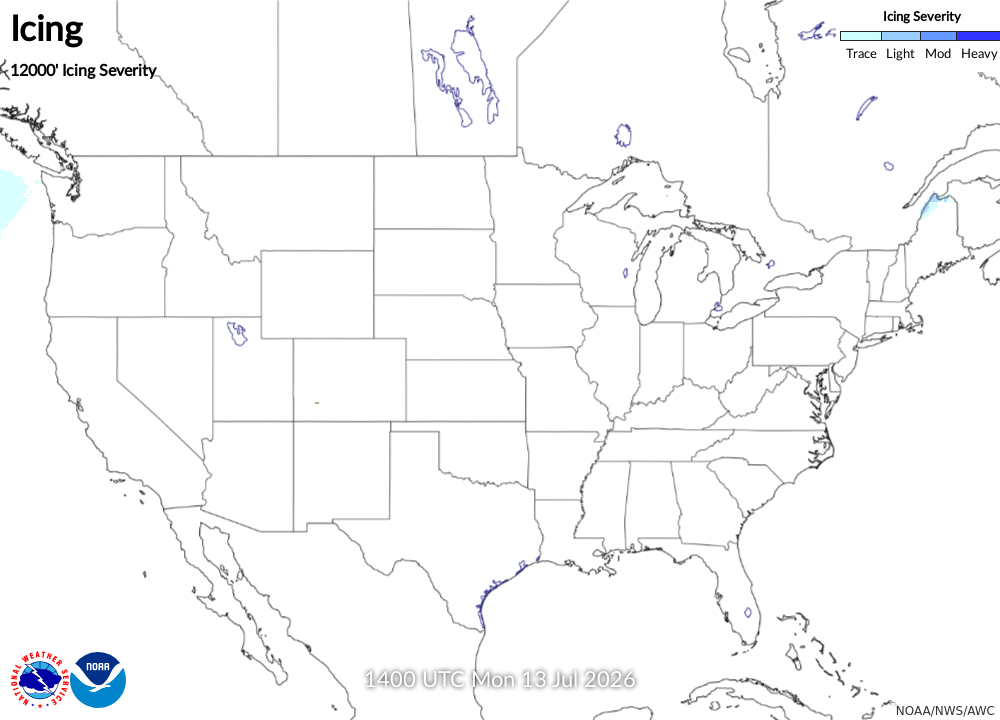

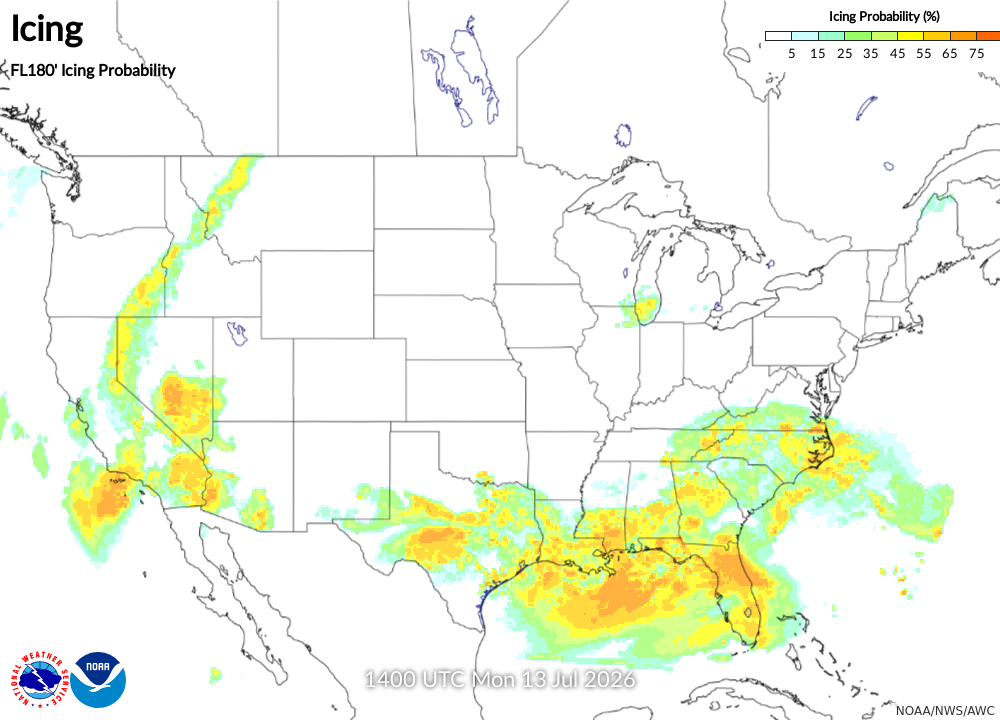

Freezing level: ~16,000–17,000 ft MSL along the entire route. Your 8,000 ft cruise is well below — temperatures are +10°C to +16°C. Structural icing is not a factor at cruise altitude in clear air.

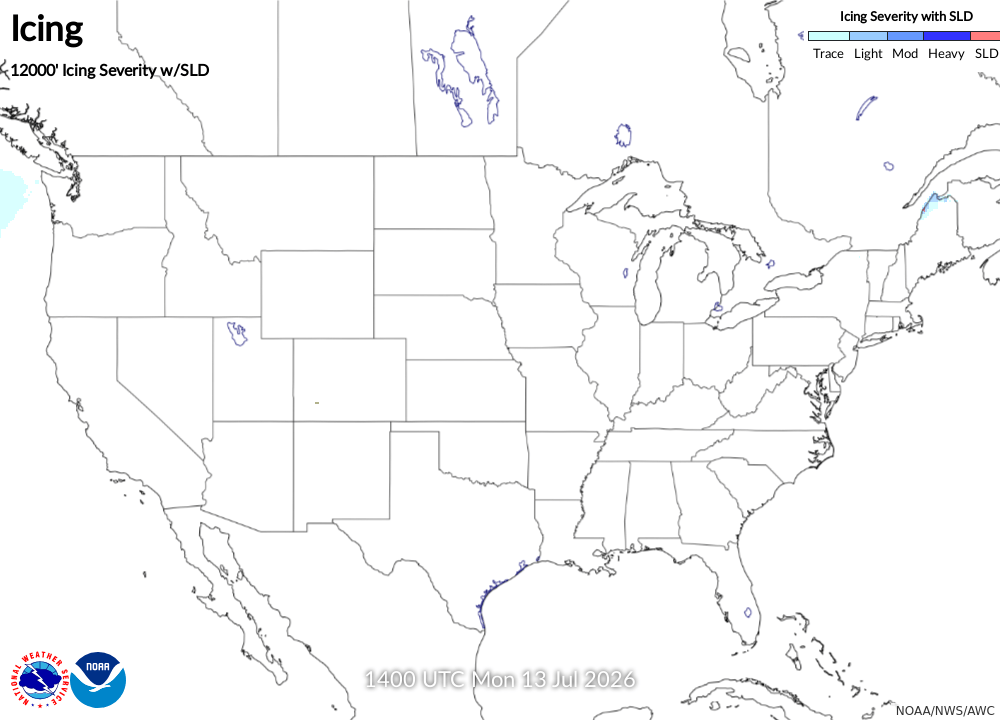

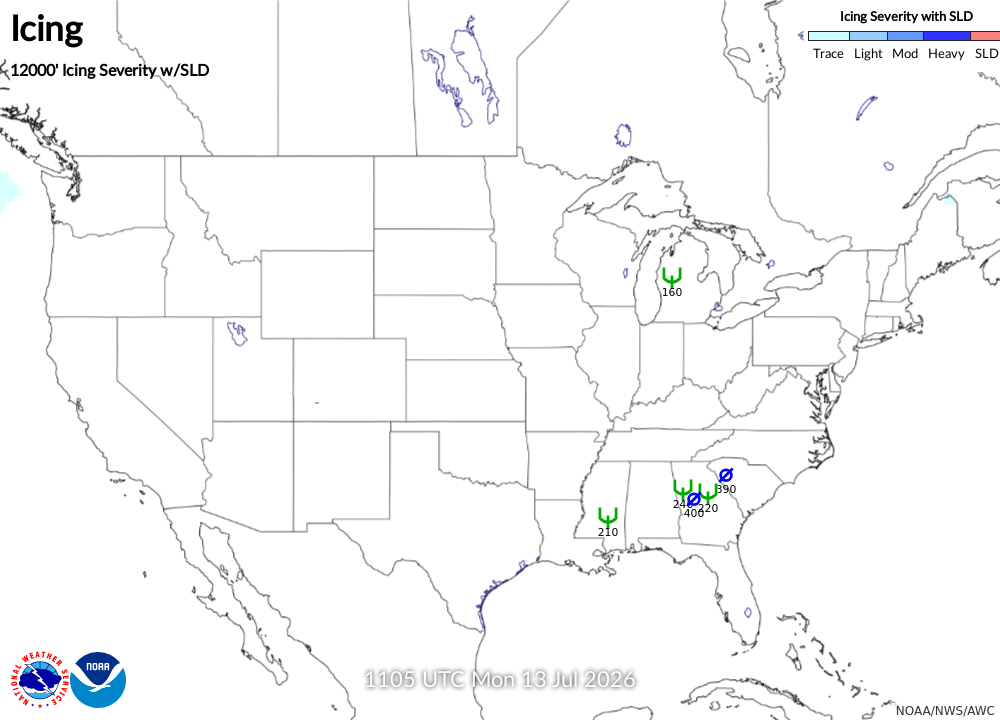

SLD: No SLD signal on route for this flight altitude. The SLD icing products show no SLD in the route corridor at FL120 or below.

Altitude Strategy

Best band: 8,000–9,000 ft. Keeps you above low-level terrain and convective scud while remaining well below the freezing level. Light winds, minimal terrain turbulence. Enough altitude to maneuver around cells while staying below Class A airspace.

Worst band: Immediately below active convective cell bases (variable, ~3,000–6,000 ft AGL in GA). This is the scud-running zone — turbulent outflow, poor visibility, reduced escape room. Do not descend into convective precipitation.

Escape options if conditions worsen:

• Convection on departure: Do not depart; hold on the ground until the cell moves east and the SIGMET is not replaced.
• En route convection blocking route: Coordinate deviations with ATC — give cells at least 20 nm lateral clearance. Do not attempt to thread between cells using cockpit datalink radar alone.
• Severe turbulence encounter: Reduce airspeed to maneuvering speed immediately, maintain wings level, accept altitude deviation, advise ATC.
• Divert: Charleston WV (CRW) or Bluefield WV are viable divert options in the mid-corridor if conditions prevent continuing to PIT. KPIT itself is clean — if you can get past the mid-route convection, the arrival is a non-event.

Getting Into KPIT

At generation time (18:51Z), KPIT was: VFR, 10 SM, few clouds at 4,600 ft, scattered at 25,000 ft, winds variable at 3 kt, temperature 29°C/dew point 17°C. High pressure is dominating western Pennsylvania — a clean picture.

TAF at planned ETA (~23:16Z): The full TAF period (18Z Sunday through 24Z Monday) calls for 11005 kt, P6SM, SCT040. There are no tempo or FM changes that modify this group at your ETA. Arrival weather is a non-event: VFR, scattered clouds at 4,000 ft, light easterly winds around 5 kt.

The WFO PBZ aviation discussion confirms high pressure domination through the TAF period. The forecaster notes a very low probability of a brief shower between 18–23Z due to residual moisture — odds are too low for TAF mention. No thunderstorm threat at KPIT during your arrival window.

Estimated block time: Roughly 166 minutes (2 hours 46 minutes) for the 458 nm route.

Runway wind estimate at arrival (~23:16Z): Winds aloft at Pittsburgh (AGC) are 090/6 kt at 6,000 ft and 080/8 kt at 9,000 ft. Surface wind in the TAF is 110/5 kt. Expect a light easterly surface wind at arrival — favoring runway 10 series. Low uncertainty; no convective outflow complication expected at KPIT.

KPIT Tower hours: The A/FD data notes KPIT is listed as non-towered in the provided facility data — confirm tower status and CTAF/GND frequencies in current Chart Supplement or NOTAMs before arrival.

Practical alternates: KPIT arrival is so clean that alternates are a formality, but strongly recommend confirming the 14 CFR 91.169 alternate requirement for your ETA window. For an IFR alternate, consider KAGC (Allegheny County Airport) immediately southeast of Pittsburgh — same high-pressure dome, GA-friendly, instrument approaches available. Avoid using KPIT's companion fields that share the same local weather regime if conditions deteriorate (unlikely given the AFD). Confirm alternates are clear of the same conditions as KPIT.

Fly or No

Verdict: MARGINAL GO — with hard stops on convective SIGMET status at engine start.

Hard Stops

1. Convective SIGMET 70E or 71E has not expired, OR a replacement SIGMET has been issued covering the departure corridor or the first 150 nm of route: Do not depart. These SIGMETs are active at your planned 20:30Z ETD (they expire 20:55Z). Departure into or adjacent to an active convective SIGMET area with severe thunderstorms, hail, and 50 kt gusts is not acceptable. Hold on the ground until the area is clear.
2. Current METAR at KATL shows TSRA in progress, CB/TCU over or immediately northeast of the field, or winds gusty and variable above 25 kt at engine start: Hold. The departure corridor needs to be VMC or clearly post-convective before you roll.
3. TFR NOTAM 6/3224 (surface–1,000 ft, Atlanta area) or NOTAM 6/8212 (surface–400 ft, Kennesaw GA area): Both are active at your ETD. Verify with ATC before taxi that your departure routing clears both TFR boundaries. If routing cannot be confirmed clear, do not depart until coordination is complete.

Why This is Not a NO-GO

The destination is clean VFR with no hazards. The convection is departure-area-specific and is moving east — behind you once airborne. The mid-route corridor has scattered convection but is not organized into a squall line or MCS; IFR deviations with ATC are workable. KPIT under high pressure is a guaranteed arrival. This flight is viable with a short hold for the SIGMETs to expire and confirmation that no replacement covers your path. If you depart into a clear slot, the middle and northern thirds of this route are benign.

This would be a NO-GO if: The 21:00Z SIGMET update issues a new convective SIGMET covering northeast Georgia or southern Appalachians, or if KATL METAR at departure shows embedded CBs northeast of the field (your climb-out heading). In that case, the combination of active organized severe convection on the departure path plus the UUA turbulence PIREP context is a hard stop.

IFR flight plan is required — not optional. Mid-route mountain obscuration (G-AIRMET SIERRA active through 21:00Z), scattered IMC associated with convection, and the need for ATC convective deviations all make VFR inadvisable.

What Changes This Call

• Convective SIGMET replacement issued at 21:00Z covering northeast GA, eastern TN, or southern WV at your cruise altitude: Scrub the departure or reroute. This is the single most likely scenario that turns MARGINAL GO into NO-GO.
• KATL METAR at 20:30Z shows ceilings below 1,500 ft or visibility below 3 SM with ongoing TSRA: Hold until post-convective improvement. Below-VFR departure into convective IMC is not acceptable.
• Surface winds at KATL exceeding 30 kt gusting from variable direction at departure time: Convective outflow still active on the field — hold.
• TRI or CRW PIREPs in the 20:00–21:00Z window reporting MOD-SEV turbulence at 8,000–10,000 ft: Reconsider altitude or timing; file higher to top convective bases if aircraft capability allows.

If You Go — Do This

Timing

• Best window: 20:55Z or later (after the SIGMETs expire and no replacement is issued). The convective line is moving east — a 25–30 minute hold likely puts you in a post-convective departure corridor. You still arrive KPIT well before any overnight IFR develops there.
• Worst window: 20:30–20:55Z — the SIGMETs are still active. Do not launch in this window unless you have positive confirmation that convection has moved well east of your climb-out path and ATC has no restrictions.

Pre-Departure Actions

1. Check ATIS/D-ATIS and get current METAR/special obs for KATL. Look specifically at TS location and movement, ceiling height, and wind direction/gusts.
2. Pull the 21:00Z Convective SIGMET update immediately before starting engines. If a new SIGMET covers any part of Georgia, Tennessee, or the first 150 nm of your route, hold.
3. Confirm NOTAM 6/3224 and 6/8212 TFR lateral bounds with Ground/Clearance Delivery before taxi. File an IFR flight plan and get a void time clearance if needed.
4. Check tfr.faa.gov and call FSS (1-800-WX-BRIEF) before departure to confirm no new TFRs or NOTAMs issued after your briefing was generated.

En Route

1. File and fly IFR. Request convective deviations from ATC as needed. Give cells at least 20 nm lateral clearance — do not attempt to thread gaps using cockpit datalink radar alone.
2. Cruise at 8,000 ft. If ATC cannot accommodate deviations at 8,000 ft and a climb to 10,000–11,000 ft would clear most convective bases, request the altitude change early. Your aircraft temperature capability permits — check aircraft performance charts.
3. Monitor Flight Service (122.2 MHz, or request updates from ATC workload permitting) for en route SIGMET updates, especially through the TN/WV corridor (~100–300 nm from KATL).
4. Carry fuel for KPIT plus at least 45 minutes reserve plus a divert to KAGC or an alternate of your choosing. KPIT is clean but the route has convective deviation potential that could add time.
5. Plan for a 166-minute block time with possible additional time for convective deviations early in the flight.

Arrival at KPIT

1. Expect VFR, SCT040, winds 110/5 kt. Runway 10 series likely in use. Non-event arrival.
2. Confirm tower hours and CTAF/GND frequencies via current Chart Supplement or NOTAMs before descent.
3. KAGC (Allegheny County Airport) as alternate if needed — same weather dome, GA-suitable.

Confidence

Medium confidence overall.

The destination is high confidence — KPIT VFR under a surface high, PBZ AFD is unambiguous, TAF is clean through the ETA. No confidence concerns at KPIT.

The departure and mid-route carry medium confidence for three reasons:

• Convective SIGMET timing: The 70E and 71E SIGMETs expire at 20:55Z — 25 minutes after ETD. Whether a replacement is issued for the same area (likely, per the SIGMET outlook referencing WW 485/486) is the single biggest unknown. The WFO FFC AFD rates medium confidence on convective extent at the airfield this afternoon specifically.
• Post-SIGMET gap duration: Even if the 21:00Z update does not re-issue for the immediate departure corridor, the convective line is slow-moving and could reform. This is not a clear-cut "it's done" situation.
• Mid-route convective coverage: Scattered cells in TN/WV are forecast but their precise positions and tops at flight time are uncertain within ±30 nm. IFR deviations are manageable but rely on ATC cooperation and cell spacing.

Confidence would increase to High if: the 21:00Z SIGMET update confirms no replacement for the Georgia/Tennessee corridor, and KATL METAR at 20:30Z returns to base period conditions (P6SM, SCT above 3,000 ft, steady winds).

Confidence would decrease to Low / flip to NO-GO if: a new convective SIGMET covers northeast Georgia or southern Appalachians at 21:00Z, or KATL METAR shows ongoing TSRA or embedded CBs northeast of field at departure time.
